DHY-200 hydraulic copper busbar processing machine for punching cutting bending
- PRODUCT DETAIL

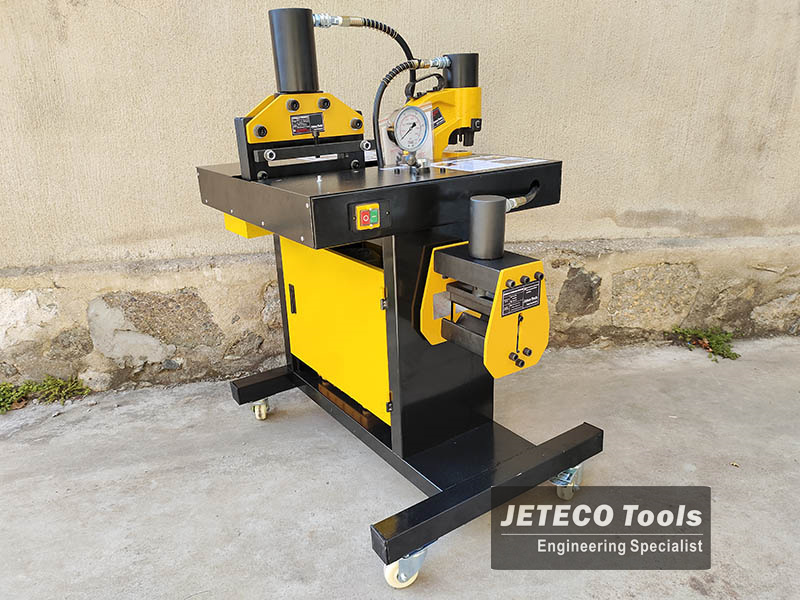

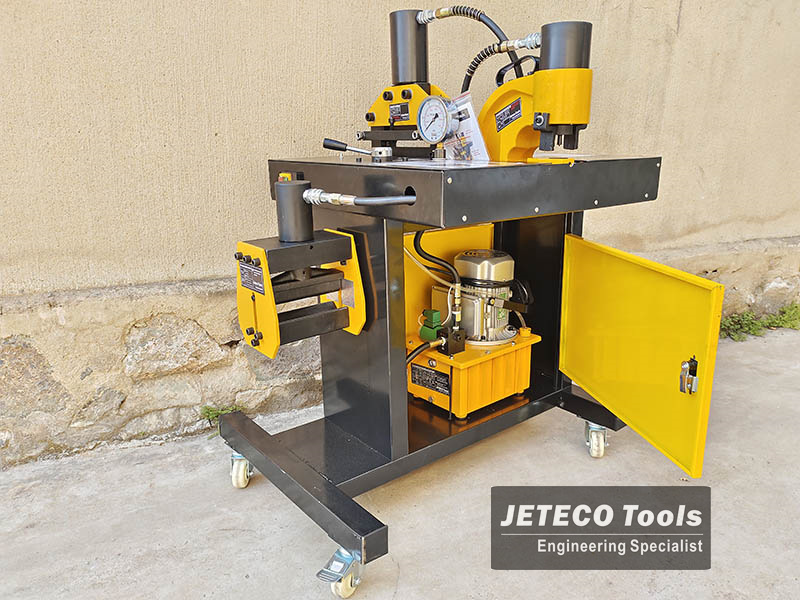

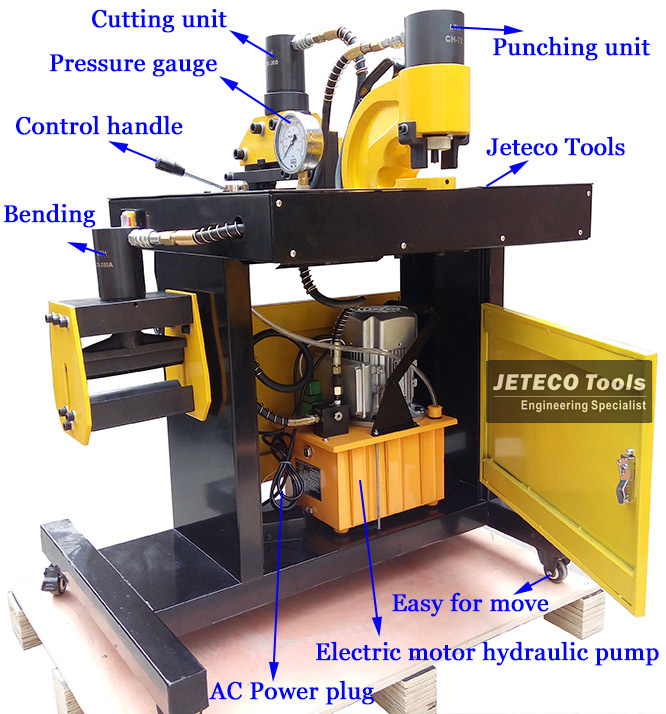

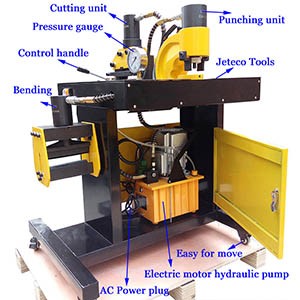

DHY-200 hydraulic copper busbar processing machine for punching cutting bending, it is a work table combination of 3 hydraulic work units, driven by an electric motor hydraulic pump inside.
This hydraulic copper busbar processing machine covers hole punching, cutting and bending, working for max up to 12mm of thickness and 200mm of width.
|
|
DHY-200 hydraulic busbar processing machine, JETECO Tools brand |
| hole punching capacity | 110mm of punching throat, 12mm of thickness. |
| hole punch dies (included) | 7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm |
| hole punch dies (for optional) |
4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 7.5mm, 8mm, 8.5mm, 9mm, 9.5mm, 10mm, 10.5mm, 11mm, 12mm, 12.5mm, 13mm, 13.5mm, 14mm, 14.5mm, 15mm, 16mm, 16.5mm, 17mm, 17.5mm, 18mm, 18.5mm, 19mm, 19.5mm, 20mm, 20.5mm, 21mm, 21.5mm, 22mm. |
| cutting capacity | 200mm of width, 12mm of thickness |
| bending capacity | 200mm of width, 12mm of thickness |
| working rate of the electric motor | 0.75KW, 220 voltage, 50 frequency |
| control method of the hydraulic units | By handle |
| control method of the electric motor | By foot pedal |
| size of work table (L*W*H) | 80cm*75cm*110cm |
