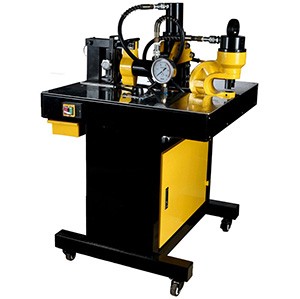

DHY-150 hydraulic copper busbar processing machine for punching cutting bending

Category: Hydraulic Busbar Tools
Views: 9

PRODUCT DETAIL

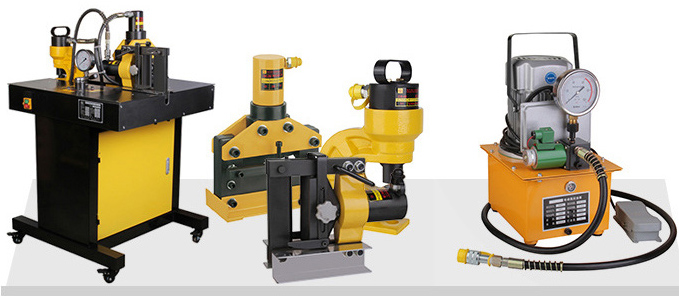

DHY-150 hydraulic copper busbar processing machine for punching cutting bending, it is a combination by electric motor pump, busbar hole puncher, cutter, bender, and a work-table.

The work table size is 70cmX70cm, 110cm height.

Three hydraulic units connected with the control center by three hydraulic oil hose.

The user can control units when which one need to work, by rotate the control handle.

This machine with max hole punching capacity is 95mm of punching throat, 10mm of thickness, 150mm of width.

The another bigger machine is DHY-200, covers 100mm of punching throat, 12mm of thickness, 200mm of width.

The machines:

	DHY-150 machine, JETECO Tools brand	DHY-200 machine, JETECO Tools brand
work table size (LengthWidthHeight)	70cmX70cmX110cm	80cmX75cmX110cm
hole punching capacity	95mm of punching throat upto 10mm of thickness	110mm of punching throat
cutting capacity	upto 10mm of thickness upto 150mm of width	up to 12mm of thickness up to 200mm of width
bending capacity	upto 10mm of thickness upto 150mm of width	upto 12mm of thickness upto 200mm of width
hole punches (included)	round sizes 7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm	round sizes 7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm
hole punches (for optional)	4.2mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 7.5mm, 8mm, 8.5mm, 9mm, 9.5mm, 10mm, 10.5mm, 11mm, 12mm, 12.5mm, 13mm, 13.5mm, 14mm, 14.5mm, 15mm, 16mm, 17.5mm, 18mm, 18.5mm, 20mm, 22mm.	4.5mm, 5mm, 6mm, 6.5mm, 7mm, 7.5mm, 8mm, 8.5mm, 9mm, 9.5mm, 10mm, 10.5mm, 11mm, 12mm, 12.5mm, 13mm, 13.5mm, 14mm, 14.5mm, 15mm, 16mm, 17.5mm, 18mm, 18.5mm, 20mm, 22mm.
control the work units	handle	handle
control the AC power pack	foot pedal	foot pedal
