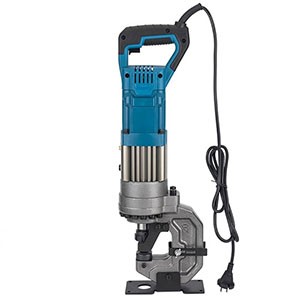

CPM-25 electric hydraulic hole puncher, for channel steel, angle iron
- PRODUCT DETAIL
CPM-25 electric hydraulic hole puncher, is a heavy duty hole punching machine, suitable for channel steel, angle iron and etc.
| Hole punching force | 20 ton |
| Hole punching in copper/aluminum busbar | max up to 8mm thickness |
| Hole punching in mild steel plate | Max up to 10mm thickness |
| Hole punching throat depth | 60mm |
| Hole punching sizes range | 6.5mm to 25.5mm |
| Hole punching dies included in machine | 6.5mm, 9mm, 13mm, 17mm, 20.5mm, 21.5mm, 25.5mm |
| Suitable AC power supply | 220 voltage, or 110 voltage, for optional |
| Weight | 16.8kg |
