JETECO Tools brand CH-100H electric motor hydraulic hole puncher, is a professional steel hole punching machine.

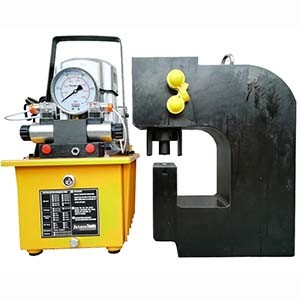

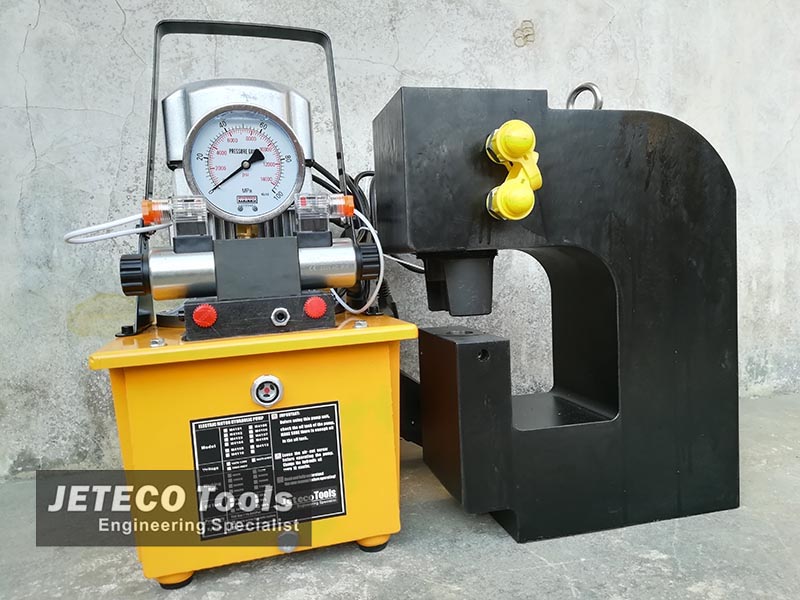

Operated by double acting electric motor hydraulic power pack, can be suitable for AC power supply 220 voltage, or 110 voltage for optional.

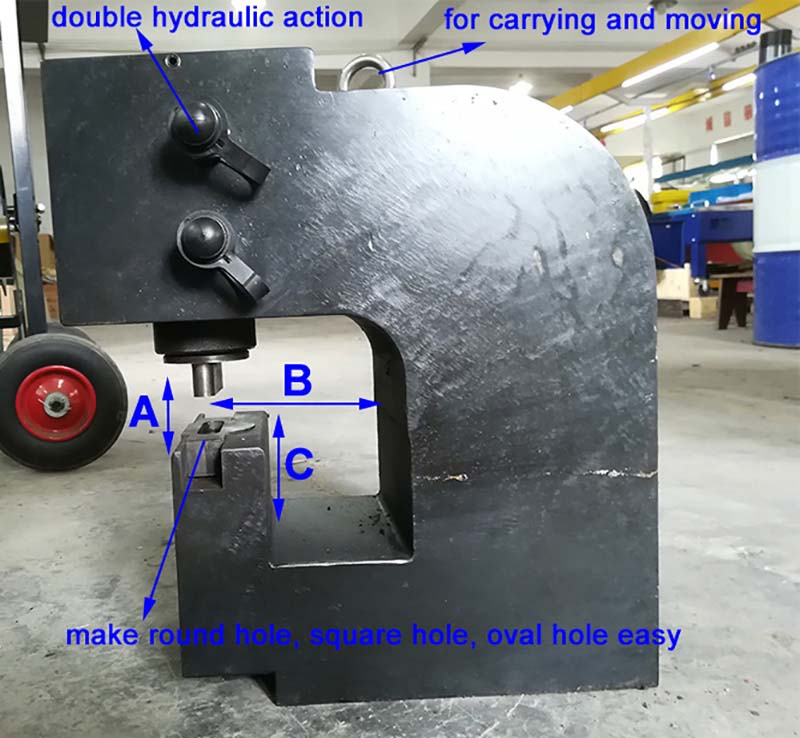

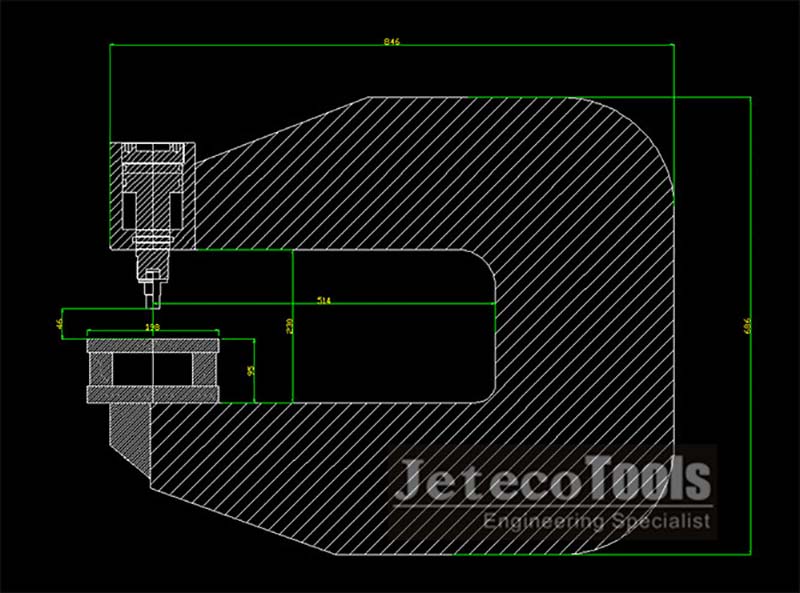

This machine with 120mm of punching throat depth.

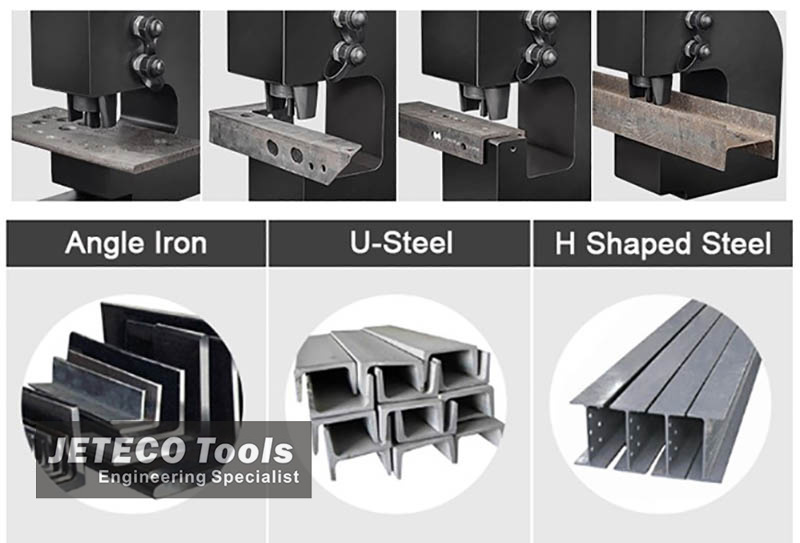

Suitable for punching holes in mild steel plate max up to 18mm thickness, angle iron 8-15#, channel steel 10-25#, H steel 8-15#.

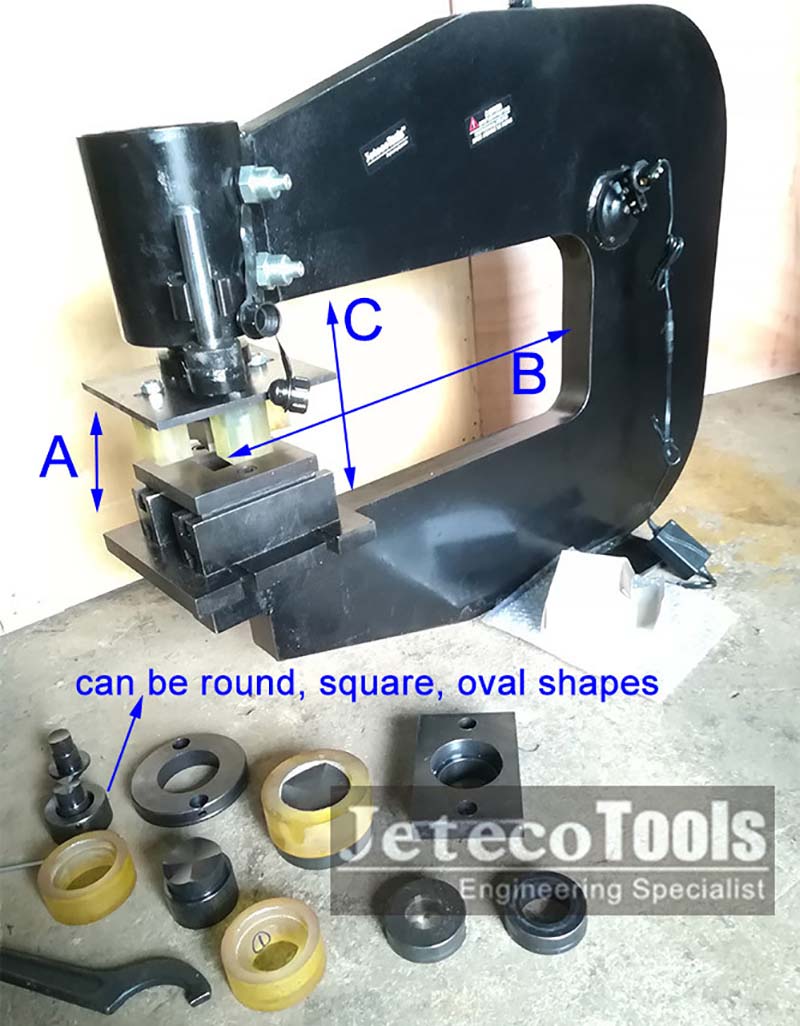

Suitable for punching round holes, square holes, oblong holes, according need.

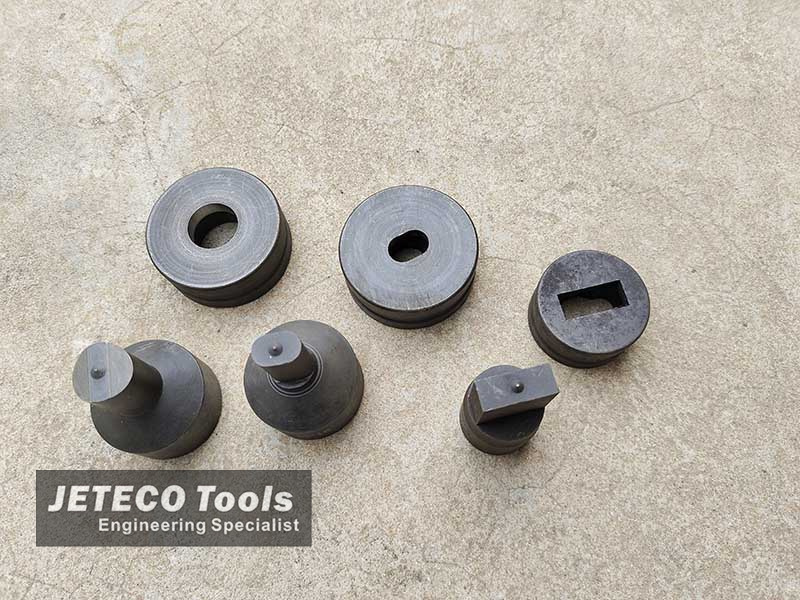

Standard machine including round hole punch dies 22mm, 25mm, 28mm, 32mm.

For special need, we can make the machine according customers' need, such as a wider punching throat.

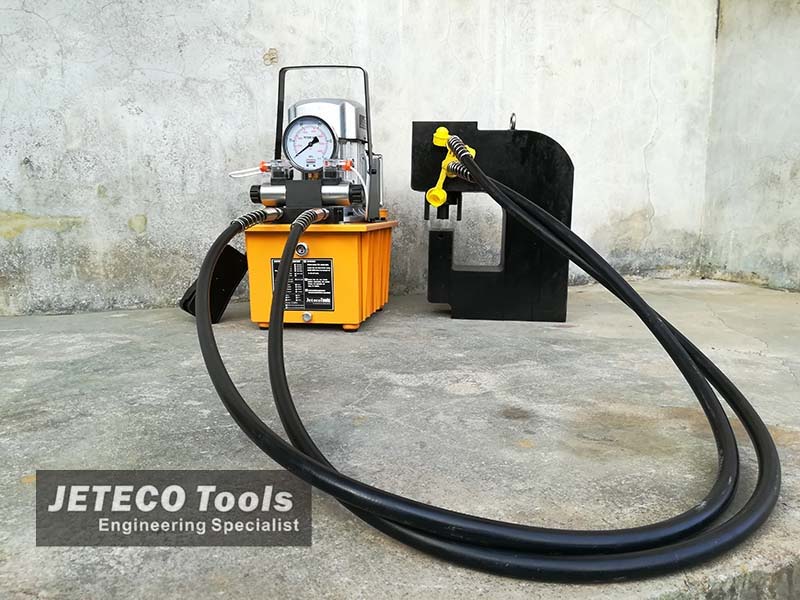

For long distance, we can offer the electric motor hydraulic pump with 4 meters length of hose, also can be 10 meters, 20 meters, for customers' need.

Even more, our 14-years experienced engineers can re-design the hole puncher according customers' requirements.

If you possible need a good hole punching machine, you can feel free to send us an inquiry with your requirements, our people will be happy to make an right machine for you.
