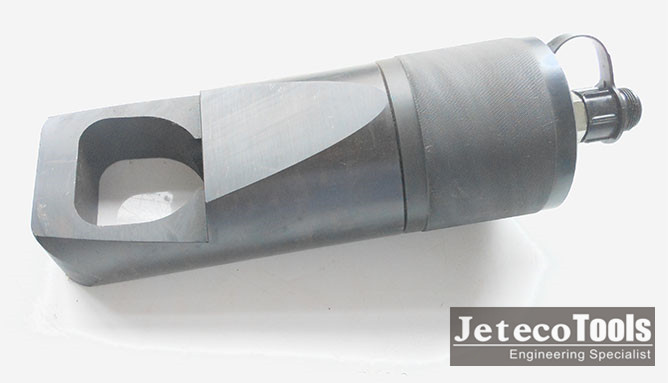

NC series hydraulic nut splitter
- Product description: NC series hydraulic nut splitter include:NC-1319, NC-1924, NC-2432, NC-3241, NC-4150, NC-5060, NC-6075 hydraulic nut splitter head.
PRODUCT INTRODUCTION
NC series hydraulic nut splitter include NC-1319, NC-1924, NC-2432, NC-3241, NC-4150, NC-5060, NC-6075 hydraulic nut splitter heads.
Compact and ergonomic design, easy to use.
Unique angle head design.
Single action style, spring return cylinder.
Applications include service trucks, piping industry, tank cleaning, petrochemical, steel construction, mining and etc.
| Bolt range (mm) | Nut range (mm) | Capacity (KN) | Oil capacity (cc) | Model number |
| M6-M12 | 10-19 | 49 | 15 | NC-1319 |
| M12-M16 | 19-24 | 98 | 20 | NC-1924 |
| M16-M22 | 24-32 | 147 | 60 | NC-2432 |
| M22-M27 | 32-41 | 196 | 80 | NC-3241 |
| M27-M33 | 41-50 | 343 | 155 | NC-4150 |
| M33-M39 | 50-60 | 490 | 240 | NC-5060 |
| M39-M49 | 60-75 | 882 | 492 | NC-6075 |
Ordering notes:Maximum allowable hardness to split is HRC44. Not to be used on square nuts.
