> Hydraulic busbar machine
DHY-200 Hydraulic busbar machine
- Product description: Professional hydraulic busbar processing machine M3011, for bending, cutting and hole punching.
PRODUCT INTRODUCTION

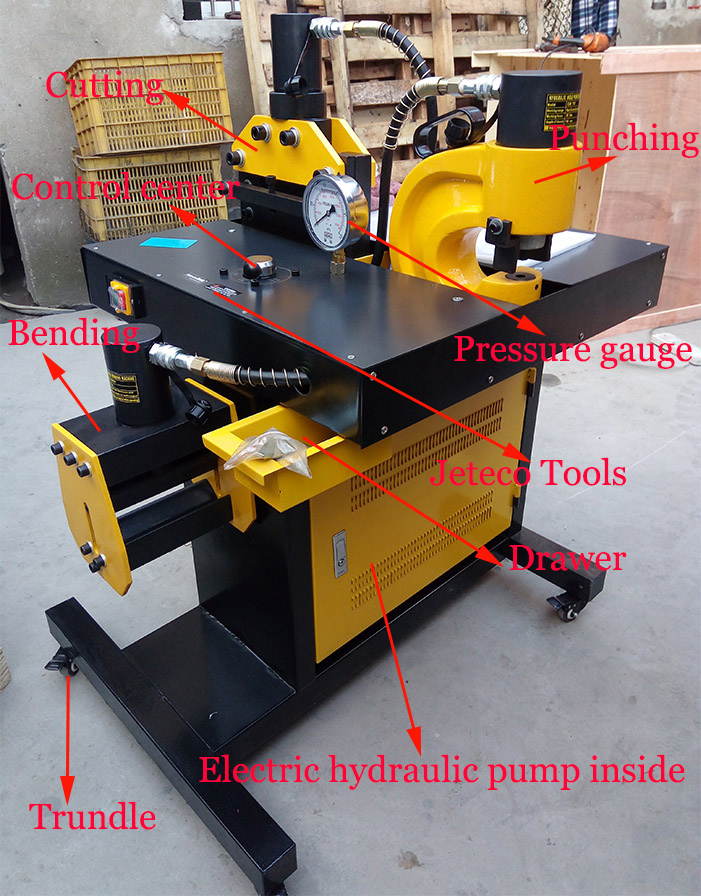

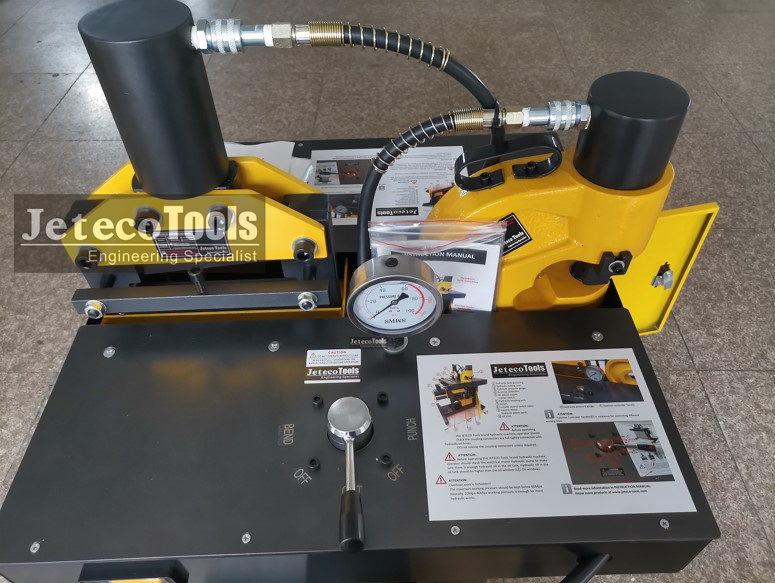

DHY-200 hydraulic busbar machine, JETECO Tools products code is M3011, it is a professional copper busbar processing machine for copper busbar bending cutting and hole punching.

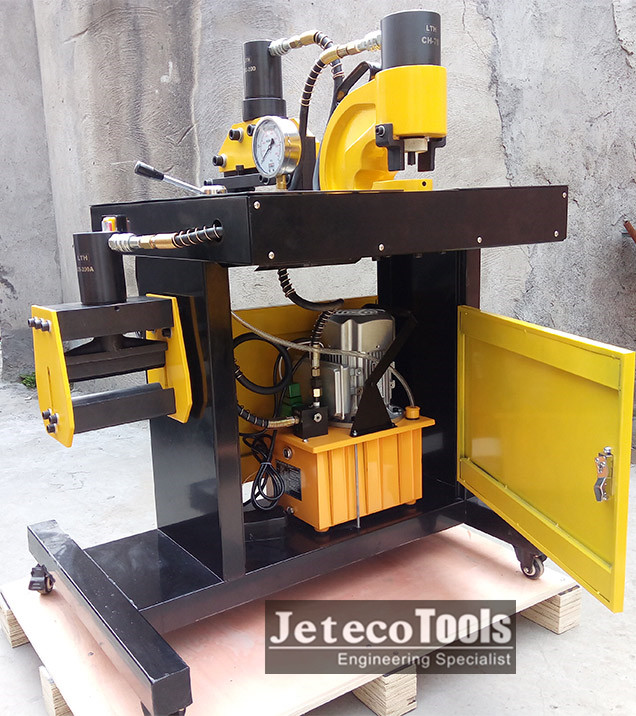

Complete hydraulic machine include hydraulic bender CB-200A, hydraulic cutter CWC-200, hydraulic hole puncher CH-70, and electric motor hydraulic pump.
All three processing operate separately by the electric motor power pack.
Information about DHY-200 hydraulic copper busbar bending cutting and hole punching machine:
|
For bending |
Max bending up to 200mm width, 12mm thickness of soft copper busbar. |
| For cutting | Max cutting up to 200mm width, 12mm thickness of soft copper busbar. |
| For punching |
Max hole punching up to 12mm thickness of soft copper, 110mm width of throat. Hole punch sizes:10.5mm, 13.8mm, 17mm, 20.5mm You can contact us for other hole sizes. |
| For operating | Electric motor hydraulic pump, 110V, 220V-240V, 380V, for optional. |
| Control type | Hand control, foot pedal control switch for optional. |
| For shipping | Suitable for sea freight. |
Information about DHY-150 and DHY-200 hydraulic busbar machine.
| DHY-150 | Max working up to 150mm width, 10mm thickness, 95mm throat. |
| DHY-200 | Max working up to 200mm width, 12mm thickness, 110mm throat. |
| Hole punch sizes |
7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm Other hole sizes 5mm - 23mm for optional. |
JETECO Tools Products Operation Instruction:
Shipment for shipping:
If you would like to know more about Jeteco Tools brand hydraulic busbar processor machine, you can feel free to call us or send email to us.
