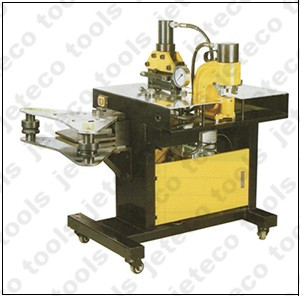

DHY-401 hydraulic busbar machine

DHY-401 hydraulic busbar processor machine for bending cutting and hole punching, made from DHY-200 add PLW-125 hydraulic bender unit.

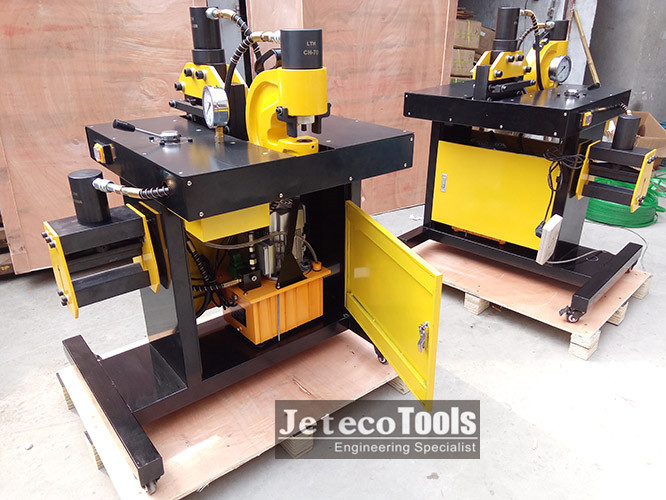

Portable three in one hydraulic busbar processing machine on a movable worktable.

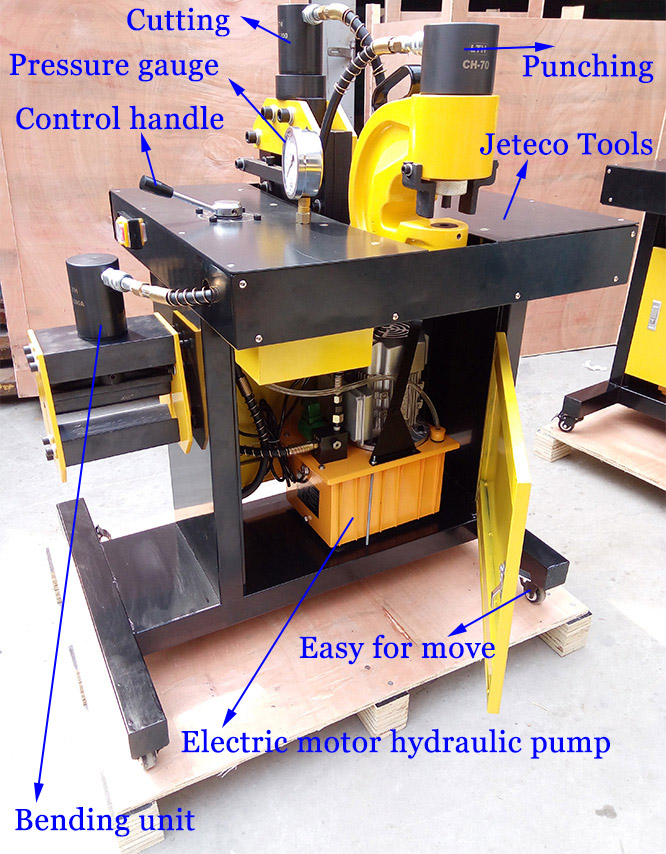

Complete hydraulic busbar processing machine include hydraulic bender, hydraulic cutter, hydraulic hole puncher.

DHY-150:for working max up to 150mm of width, 10mm of thickness, and 95mm of punching throat.

DHY-200:for working max up to 200mm of width, 12mm of thickness, and 110mm of punching throat.

Punching hole sizes 10.5mm, 13.8mm, 17mm, 20.5mm.

Other sizes 5mm, 5.5mm, 6mm, 6.5mm, ..., 22mm are for selected.

Three hydraulic working units to be drived by electric hydraulic pump M4101, for AC power 110V, 220V, 380V can ok.

Machines can be color yellow, blue, red, black.

For more information, please feel free to contact Jeteco Tools.
